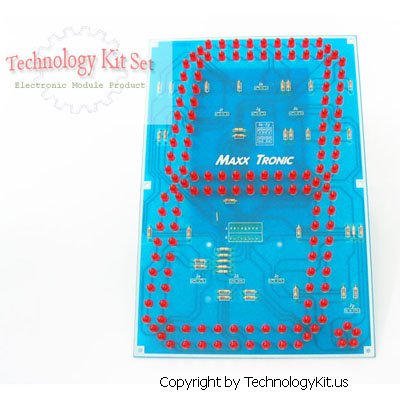

| Seven Segment Display Nine Inches Tall LED Light Display Panel Electronic Module |  | Manufacturer: TechnologyKit.us
This item is no longer available
Shipping Weight (lbs): 0.5
Dimensions (in): 6.6 x 2 x 9.7
MPN: MX037
Model: MX037
| |
| Features:
| • | Display dimensions: 147.10 x 229.80 mm. or 5.8 x 9 inch. | | • | PCB dimensions: 161.60 x 240.70 mm. or 6.4 x 9.5 inch. | | • | Power supply: 12 Vdc or 24 Vdc. (select jumper) | | • | Consist: 20 LED's per segment and 5 LED's for a decimal point (p). | | • | At 12 Vdc. A segment current ~ 60 mA. A decimal point (p) current ~ 15 mA. Total current ~ 435 mA. |
| |
| Editorial Reviews:
Product Description
9 inches tall, twenty LEDs per segment, five for the decimal. This is a fully tested and assembled module. Can run on either 12vDC or 24vDC, depending on how you set a jumper. At 12vDC, each segment runs on 60mA, the decimal 15mA, for a total current of 435mA. Simply connect the common cathode and the common anode on the copper side of the board to your seven segment display driver, and you are all set!
| |
|
|
