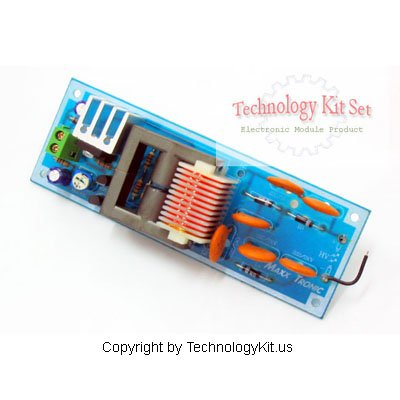

High Voltage DC Generating Electronic Module

Manufacturer: Technologykit.us

This item is no longer available

Shipping Weight (lbs): 0.4
Dimensions (in): 4.8 x 1.6 x 2

MPN: MX028
Model: MX028

Features:

•	Output-voltage ot HV point : approx 7,000 - 8,000 volts ( on load ) connector and tuning.
•	12V point is used for connected to the power supply 12 volt.
•	HV point is output of high-voltage. when connected the power supply to circuit at HV point will have sprk distance of the needle tip is not more than 1 cm.
•	VR 100K is used for adjusted the frequency of monostable multivibrator.
•	Power supply : 9 - 15 Vdc. / max 350 mA.

Editorial Reviews:

Product Description
This is a fully assembled and tested module. Has an output voltage of approximately 7,000 - 8,000 volts (no load) 12 V connector and frequency adjust included. Produces a spark of no more than 1 cm in length. Fun for Kirlian photography.
